Sumitomo

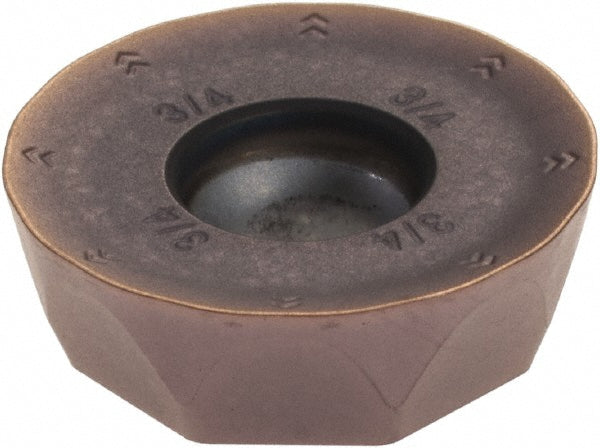

Round 0.7500" IC Solid Carbide Insert, Grade ACP200, Coated - Sumitomo 14HAW1N
MFR# 14HAW1N
$18.84List $24.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeACP200
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HAW1N is a solid carbide indexable insert, grade ACP200, Coated coated. Suited for stainless steel, steel.
Specifications
Ansi codeQPMT6416PPEN ACP200
Coating finishCoated
Coating processPVD
Cutter series compatibilityWRCX
Inscribed circle0.7500
Inscribed circle range0.7000 to 1.0000
Insert materialSolid Carbide
Insert shapeRound
Insert size6416
Insert size code6416
Insert styleQPMT
Manufacturer gradeACP200
Maximum depth of cut0.3750
Primary workpiece materialStainless Steel; Steel
StandardsANSI
Thickness0.2500
Thickness range0.2500 to 0.3500
