Sumitomo

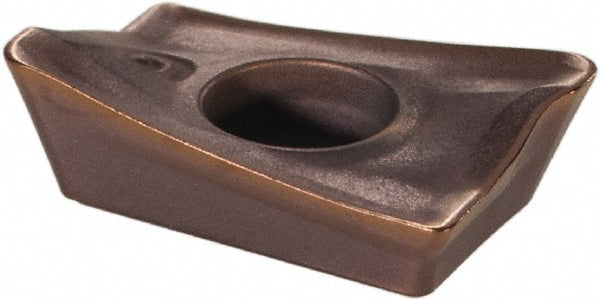

Parallelogram Solid Carbide Insert, Grade ACP300, Coated - Sumitomo 14HB310
MFR# 14HB310
$13.34List $16.81
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACP300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HB310 is a solid carbide indexable insert, grade ACP300, Coated coated. Suited for steel.
Specifications
Chip breakerG
Coating finishCoated
Coating processPVD
Cutting edge effective length0.4720
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size code1235
Insert styleAXMT
Length range0.4500 to 0.5000
Manufacturer gradeACP300
Maximum depth of cut0.3940
Primary workpiece materialSteel
Relief angle11
Thickness0.1380
Thickness range0.1250 to 0.1500
