Sumitomo

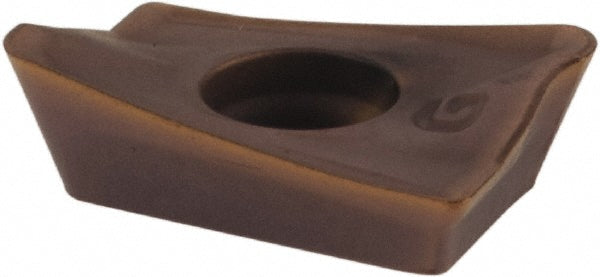

Parallelogram Solid Carbide Insert, Grade ACP300 - Sumitomo 14HB311
MFR# 14HB311
$11.61List $14.88
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACP300
MaterialSolid Carbide
Description
The Sumitomo 14HB311 is a solid carbide indexable insert, grade ACP300. Suited for steel.
Specifications
Chip breakerG
Coating processPVD
Corner radius0.0470
Cutter series compatibilityWEX3000
Cutting edge effective length0.4720
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size123512
Insert size code1235
Insert styleAXMT
Length0.4720
Length range0.4500 to 0.5000
Manufacturer gradeACP300
Material gradeC5; C5A; C6
Maximum depth of cut0.3940
Primary workpiece materialSteel
Relief angle11.00
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.2600
