Sumitomo

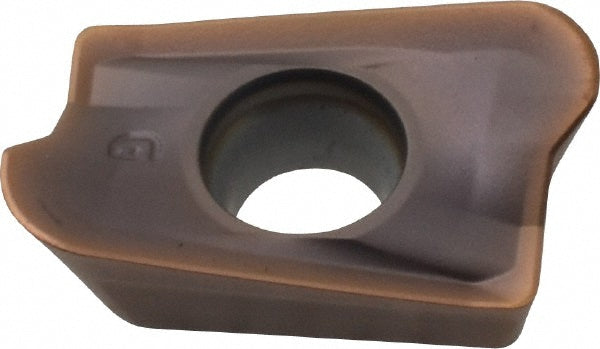

Parallelogram Solid Carbide Insert, Grade ACP300 - Sumitomo 14HB322
MFR# 14HB322
$14.68List $18.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACP300
MaterialSolid Carbide
Description
The Sumitomo 14HB322 is a solid carbide indexable insert, grade ACP300. Suited for steel.
Specifications
Chip breakerG
Coating processPVD
Corner radius0.1180
Cutter series compatibilityWEX3000
Cutting edge effective length0.6890
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size170530
Insert size code1235
Insert styleAXMT
Length0.6890
Length range0.6500 to 0.7000
Manufacturer gradeACP300
Material gradeC5; C5A; C6
Maximum depth of cut0.5510
Primary workpiece materialSteel
Relief angle11.00
Thickness0.2190
Thickness range0.2000 to 0.2200
Width0.4020
