Sumitomo

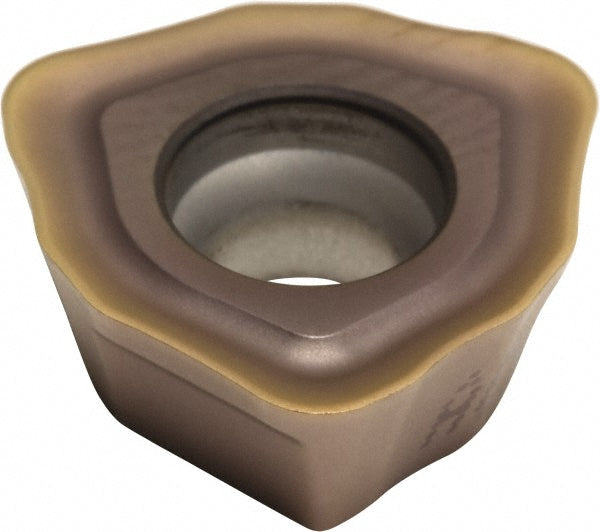

WDMT0804ZDTR ACP300 Solid Carbide Insert, Grade ACP300, Coated - Sumitomo 14HB624
MFR# 14HB624ISO/ANSI# WDMT0804ZDTR ACP300
$11.73List $15.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeACP300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HB624 is a WDMT0804ZDTR ACP300 solid carbide indexable insert, grade ACP300, Coated coated. Suited for stainless steel, steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0787
Cutter series compatibilityMSX
Included angle degree80
Inscribed circle0.3350
Inscribed circle range0.3000 to 0.3500
Insert materialSolid Carbide
Insert shapeTrigon
Insert size0804
Insert size code0804
Insert styleWDMT
Iso codeWDMT0804ZDTR ACP300
Manufacturer gradeACP300
Primary workpiece materialStainless Steel; Steel
Relief angle15
StandardsISO
Thickness0.1575
Thickness range0.1500 to 0.1750
