Sumitomo

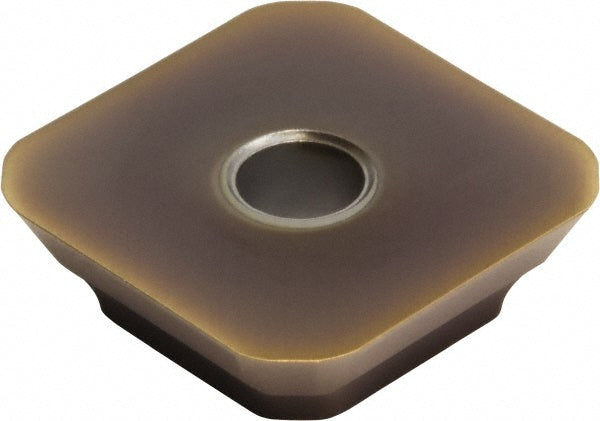

Square 1/2" IC Solid Carbide Insert, Grade ACP300, Coated - Sumitomo 14HB660
MFR# 14HB660
$12.29List $15.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeACP300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HB660 is a solid carbide indexable insert, grade ACP300, Coated coated. Suited for stainless steel, steel.
Specifications
Coating finishCoated
Coating processPVD
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert materialSolid Carbide
Insert shapeSquare
Insert size12T3
Insert size code12
Insert styleSFKN
Manufacturer gradeACP300
Primary workpiece materialStainless Steel; Steel
Relief angle25
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.0880
