Sumitomo

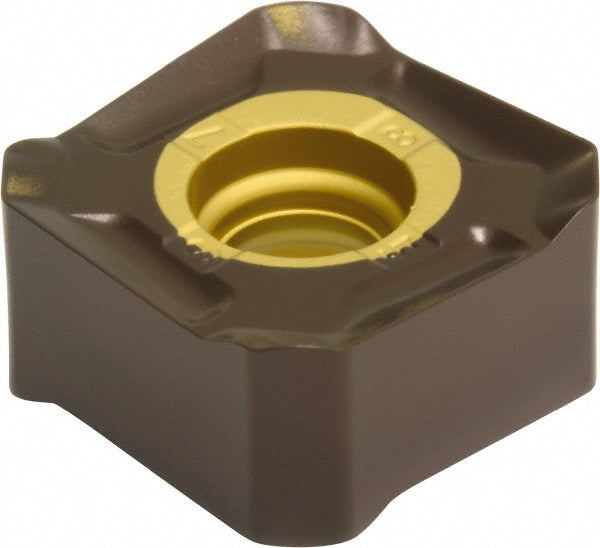

Square Solid Carbide Insert, Grade ACP300, TiAlN - Sumitomo 14HB924
MFR# 14HB924
$22.85List $29.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeACP300
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 14HB924 is a solid carbide indexable insert, grade ACP300, TiAlN coated. Suited for stainless steel, steel.
Specifications
Chip breakerG
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityDGC
Insert materialSolid Carbide
Insert shapeSquare
Insert size13T6
Insert size code13
Insert styleSNMT
Length0.5315
Length range0.5000 to 0.6000
Manufacturer gradeACP300
Maximum depth of cut0.2400
Primary workpiece materialStainless Steel; Steel
Relief angle0.00
Thickness0.2717
Thickness range0.2500 to 0.3500
Width0.5315
