Sumitomo

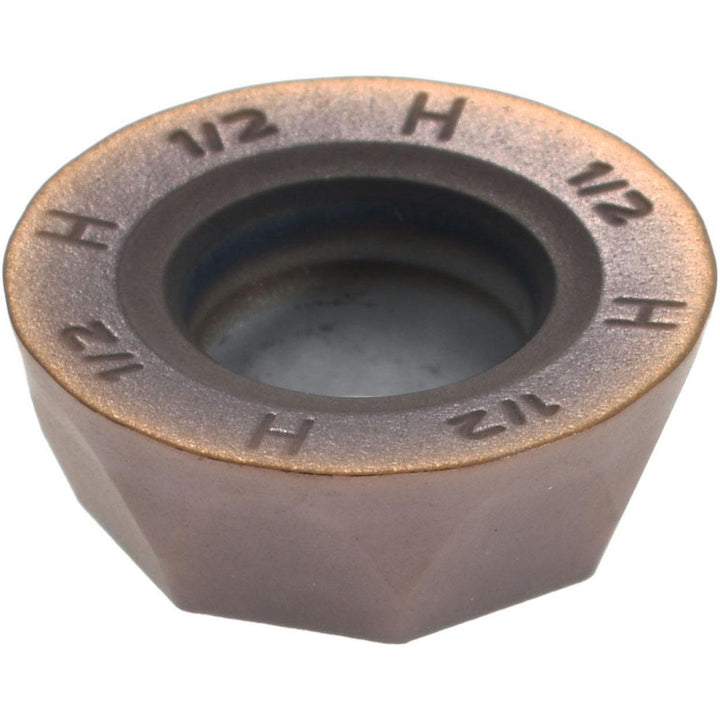

Round 0.5000" IC Solid Carbide Insert, Grade ACP300 - Sumitomo 14HBW1G
MFR# 14HBW1G
$15.65List $20.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeACP300
MaterialSolid Carbide
Description
The Sumitomo 14HBW1G is a solid carbide indexable insert, grade ACP300. Suited for stainless steel, steel.
Specifications
Ansi codeQPMT4312PPENH ACP300
Chip breakerH
Coating processPVD
Cutter series compatibilityWRCX
Inscribed circle0.5000
Inscribed circle range0.5000 to 0.5100
Insert materialSolid Carbide
Insert shapeRound
Insert size4312
Insert size code4312
Insert styleQPMT
Manufacturer gradeACP300
Maximum depth of cut0.2500
Primary workpiece materialStainless Steel; Steel
StandardsANSI
Thickness0.1875
Thickness range0.1850 to 0.2000
