Sumitomo

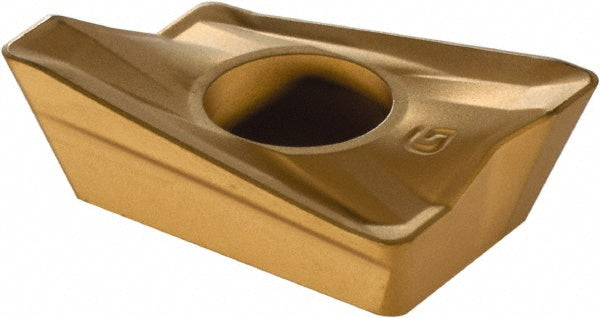

Parallelogram Solid Carbide Insert, Grade ACK200 - Sumitomo 14HC313
MFR# 14HC313
$14.68List $18.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACK200
MaterialSolid Carbide
Description
The Sumitomo 14HC313 is a solid carbide indexable insert, grade ACK200. Suited for cast iron.
Specifications
Chip breakerG
Coating processCVD
Corner radius0.0310
Cutter series compatibilityWEX3000
Cutting edge effective length0.6890
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size170508
Insert size code1235
Insert styleAXMT
Length0.6890
Length range0.6500 to 0.7000
Manufacturer gradeACK200
Material gradeK01; K10; K20
Maximum depth of cut0.5510
Primary workpiece materialCast Iron
Relief angle11.00
Thickness0.2190
Thickness range0.2000 to 0.2200
Width0.4020
