Sumitomo

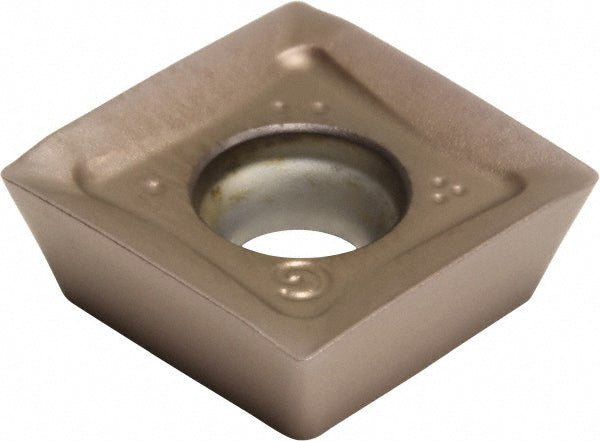

SOMT120408PDERG ACK200 Solid Carbide Insert, Grade ACK200 - Sumitomo 14HC919
MFR# 14HC919ISO/ANSI# SOMT120408PDERG ACK200
$19.28List $24.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeACK200
MaterialSolid Carbide
Description
The Sumitomo 14HC919 is a SOMT120408PDERG ACK200 solid carbide indexable insert, grade ACK200. Suited for cast iron.
Specifications
Chip breakerG
Coating processCVD
Corner radius0.0315
Insert materialSolid Carbide
Insert shapeSquare
Insert size120408
Insert size code1204
Insert styleSOMT
Iso codeSOMT120408PDERG ACK200
Length0.5000
Length range0.5000 to 0.6000
Manufacturer gradeACK200
Primary workpiece materialCast Iron
StandardsISO
Thickness0.1874
Thickness range0.1850 to 0.2000
Width0.5000
