Sumitomo

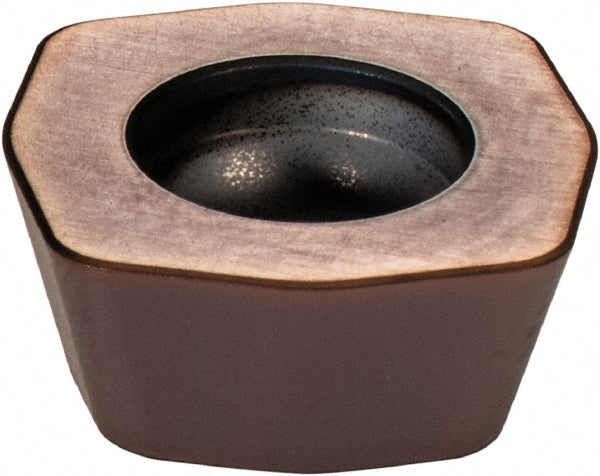

Square 0.5510" IC Solid Carbide Insert, Grade ACK300, Coated - Sumitomo 14HD106
MFR# 14HD106
$22.42List $28.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeACK300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HD106 is a solid carbide indexable insert, grade ACK300, Coated coated.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0790
Cutter series compatibilityMS
Hole diameter0.1970
Inscribed circle0.5510
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeSquare
Insert size1406
Insert size code1406
Insert styleSDMW
Manufacturer gradeACK300
Relief angle15
Thickness0.2360
Thickness range0.2350 to 0.2500
