Sumitomo

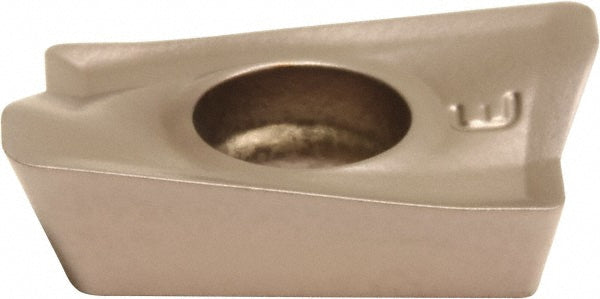

Parallelogram Solid Carbide Insert, Grade ACK300, Coated - Sumitomo 14HD310
MFR# 14HD310
$11.61List $14.88
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACK300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HD310 is a solid carbide indexable insert, grade ACK300, Coated coated. Suited for cast iron.
Specifications
Chip breakerG
Coating finishCoated
Coating processPVD
Corner radius0.0310
Cutter series compatibilityWEX2000
Cutting edge effective length0.4720
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size123508
Insert size code1235
Insert styleAXMT
Length0.4720
Length range0.4500 to 0.5000
Manufacturer gradeACK300
Maximum depth of cut0.3940
Primary workpiece materialCast Iron
Relief angle11
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.2600
