Sumitomo

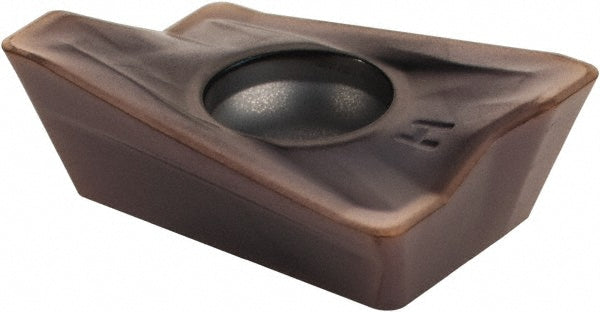

Parallelogram Solid Carbide Insert, Grade ACK300, Coated - Sumitomo 14HD314
MFR# 14HD314
$14.68List $18.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACK300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HD314 is a solid carbide indexable insert, grade ACK300, Coated coated. Suited for cast iron.
Specifications
Chip breakerH
Coating finishCoated
Coating processPVD
Corner radius0.0310
Cutter series compatibilityWEX2000
Cutting edge effective length0.6890
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size170508
Insert size code1235
Insert styleAXMT
Length0.6890
Length range0.6500 to 0.7000
Manufacturer gradeACK300
Material gradeC4
Maximum depth of cut0.5510
Primary workpiece materialCast Iron
Relief angle11
Thickness0.2190
Thickness range0.2000 to 0.2200
Width0.4020
