Sumitomo

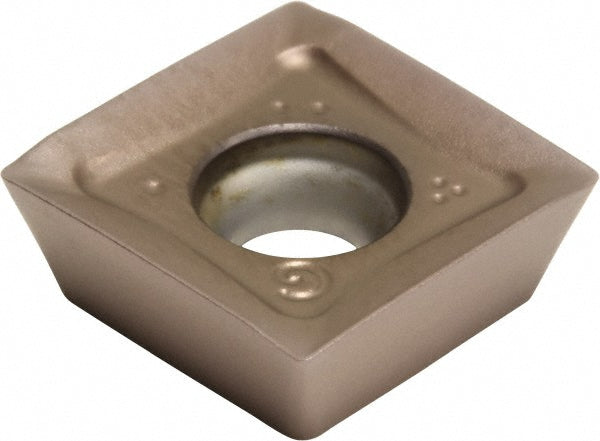

SOMT120408PDERG ACK300 Solid Carbide Insert, Grade ACK300 - Sumitomo 14HD919
MFR# 14HD919ISO/ANSI# SOMT120408PDERG ACK300
$19.28List $24.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeACK300
MaterialSolid Carbide
Description
The Sumitomo 14HD919 is a SOMT120408PDERG ACK300 solid carbide indexable insert, grade ACK300. Suited for cast iron.
Specifications
Chip breakerG
Coating processPVD
Corner radius0.0315
Insert materialSolid Carbide
Insert shapeSquare
Insert size120408
Insert size code1204
Insert styleSOMT
Iso codeSOMT120408PDERG ACK300
Length0.5000
Length range0.5000 to 0.6000
Manufacturer gradeACK300
Primary workpiece materialCast Iron
StandardsISO
Thickness0.1874
Thickness range0.1850 to 0.2000
Width0.5000
