Sumitomo

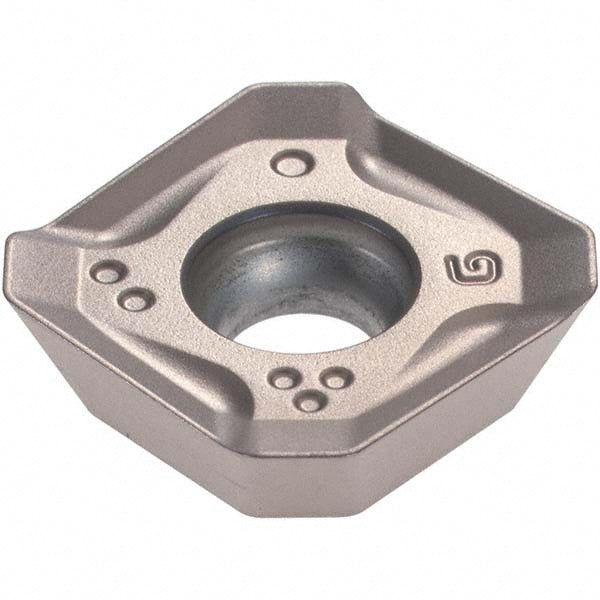

Square 1/2" IC Solid Carbide Insert, Grade ACK300, Coated - Sumitomo 14HD980
MFR# 14HD980
$14.50List $18.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeACK300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HD980 is a solid carbide indexable insert, grade ACK300, Coated coated. Suited for cast iron.
Specifications
Chip breakerG
Coating finishCoated
Coating processPVD
Cutter series compatibilityWGX
Cutting edge effective length (mm)13.40
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert materialSolid Carbide
Insert shapeSquare
Insert size13T3
Insert size code13
Insert styleSEET
Manufacturer gradeACK300
Primary workpiece materialCast Iron
Relief angle20
Thickness0.1900
Thickness range0.1850 to 0.2000
