Sumitomo

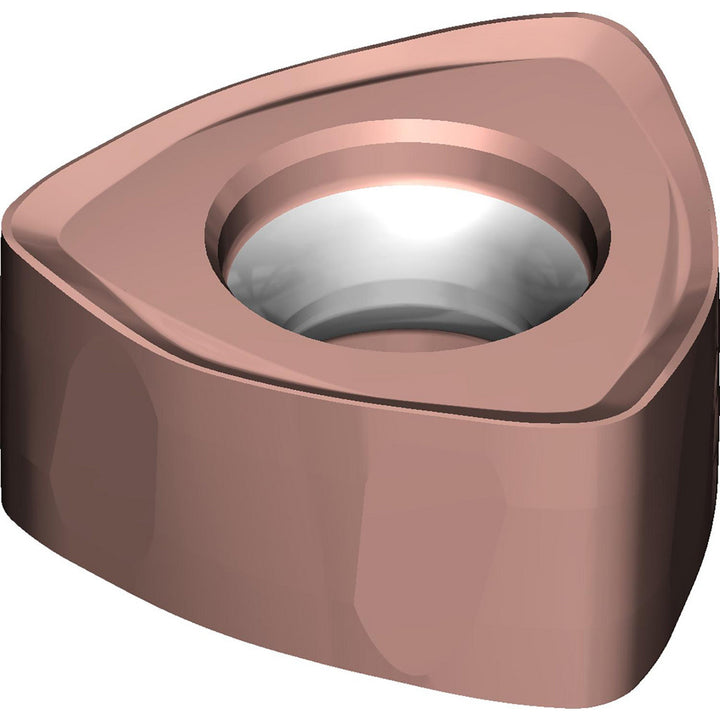

Trigon Solid Carbide Insert, Grade ACP3000 - Sumitomo 14T9BBW
MFR# 14T9BBWCat# WNMU0807ZNER-H-ACP3000Series DMSW
$33.73List $43.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeACP3000
MaterialSolid Carbide
Description
The Sumitomo 14T9BBW is a solid carbide indexable insert, grade ACP3000.
Specifications
Ansi codeWNMU0807ZNER-H-ACP3000
Chip breakerH
Coating processPVD
Corner radius (mm)1.60
Cutter series compatibilityDMSW
Inscribed circle (mm)13.00
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size0807
Insert size codeW
Insert styleWNMU
Manufacturers catalog numberWNMU0807ZNER-H-ACP3000
Manufacturer gradeACP3000
Maximum depth of cut (mm)3.00
Number of cutting edges6
Single or double sided insertDouble
Thickness (mm)7.00
