Sumitomo

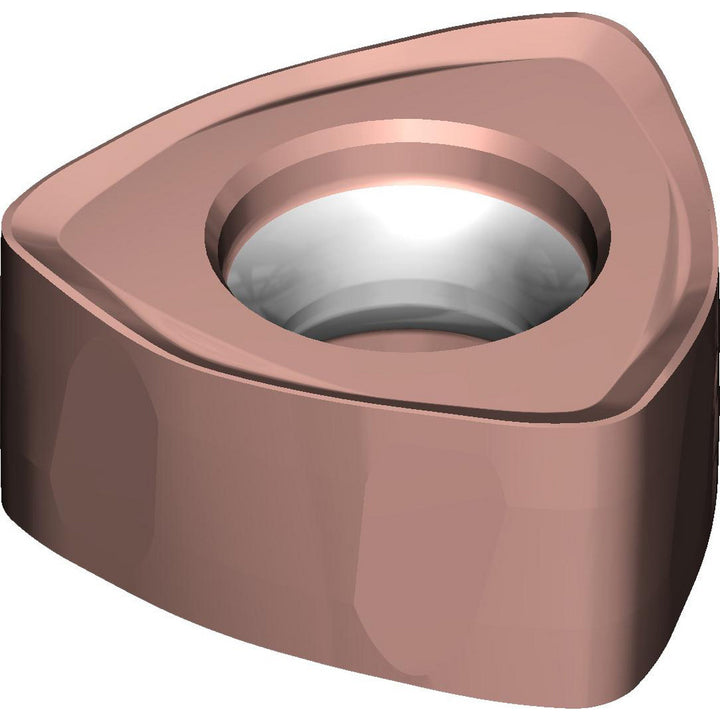

Trigon Solid Carbide Insert, Grade ACK3000 - Sumitomo 14U1BBP
MFR# 14U1BBPCat# WNMU0807ZNER-G-ACK3000Series DMSW
$33.73List $43.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeACK3000
MaterialSolid Carbide
Description
The Sumitomo 14U1BBP is a solid carbide indexable insert, grade ACK3000.
Specifications
Ansi codeWNMU0807ZNER-G-ACK3000
Chip breakerG
Coating processPVD
Corner radius (mm)1.60
Cutter series compatibilityDMSW
Inscribed circle (mm)13.00
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size0807
Insert size codeW
Insert styleWNMU
Manufacturers catalog numberWNMU0807ZNER-G-ACK3000
Manufacturer gradeACK3000
Maximum depth of cut (mm)3.00
Number of cutting edges6
Single or double sided insertDouble
Thickness (mm)7.00
