Sumitomo

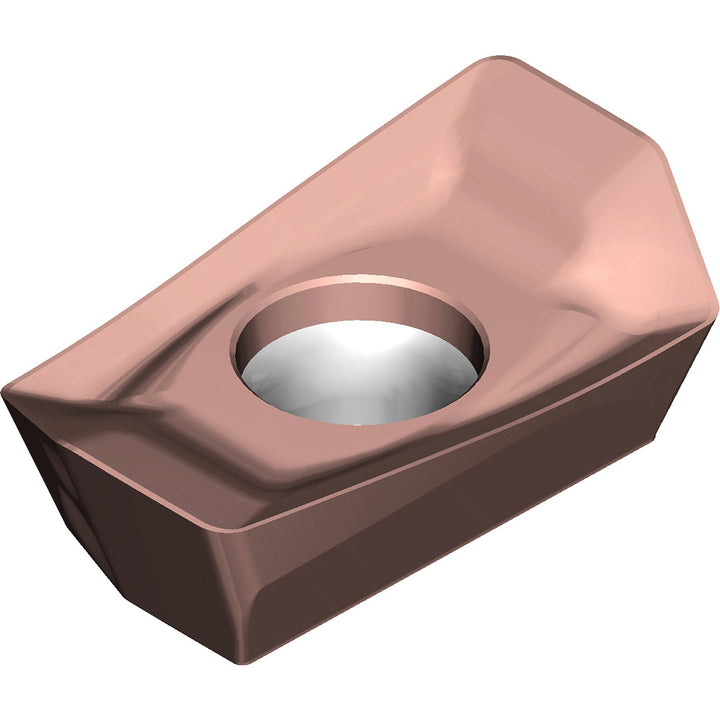

Rectangle Solid Carbide Insert, Grade ACU2500 - Sumitomo 14U2ALH
MFR# 14U2ALH
$18.07List $22.77
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeACU2500
MaterialSolid Carbide
Description
The Sumitomo 14U2ALH is a solid carbide indexable insert, grade ACU2500.
Specifications
Chip breakerG
Coating processPVD
Corner radius (mm)1.60
Cutter series compatibilityWEZ
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeRectangle
Insert size1705
Insert styleAOMT
Manufacturer gradeACU2500
Maximum depth of cut (mm)15.00
Thickness (mm)5.50
