Sumitomo

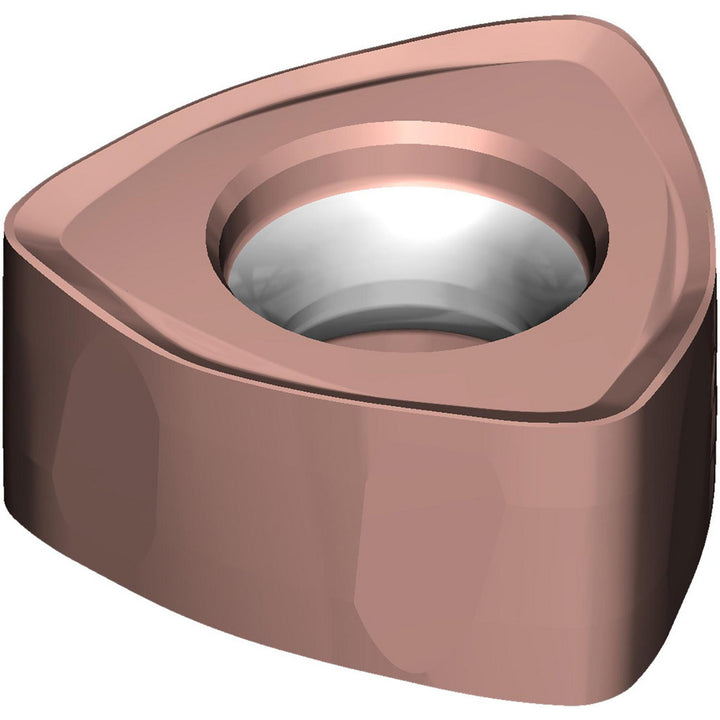

Trigon Solid Carbide Insert, Grade ACU2500 - Sumitomo 14U2BBP
MFR# 14U2BBPCat# WNMU0807ZNER-G-ACU2500Series DMSW
$33.73List $43.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeACU2500
MaterialSolid Carbide
Description
The Sumitomo 14U2BBP is a solid carbide indexable insert, grade ACU2500.
Specifications
Ansi codeWNMU0807ZNER-G-ACU2500
Chip breakerG
Coating processPVD
Corner radius (mm)1.60
Cutter series compatibilityDMSW
Inscribed circle (mm)13.00
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size0807
Insert size codeW
Insert styleWNMU
Manufacturers catalog numberWNMU0807ZNER-G-ACU2500
Manufacturer gradeACU2500
Maximum depth of cut (mm)3.00
Number of cutting edges6
Single or double sided insertDouble
Thickness (mm)7.00
