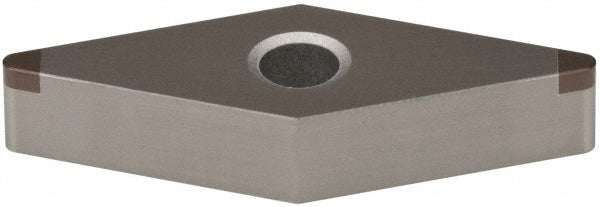

2NU-VNGA160404 Polycrystalline Cubic Boron Nitride Insert, Grade BN1000 - Sumitomo 161NDKA

Sumitomo

2NU-VNGA160404 Polycrystalline Cubic Boron Nitride Insert, Grade BN1000 - Sumitomo 161NDKA

MFR# 161NDKAISO/ANSI# 2NU-VNGA160404Series VNGA

$61.77List $79.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN1000
MaterialPolycrystalline Cubic Boron Nitride

Description

The Sumitomo 161NDKA is a 2NU-VNGA160404 polycrystalline cubic boron nitride indexable insert, grade BN1000. Suited for cast iron, hard material, superalloy.

Specifications

Ansi code2NUVNGA331
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1102
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code331
Insert style2NU-VNGA
Insert thickness in3/16
Iso code2NU-VNGA160404
Manufacturer gradeBN1000
Material gradeC2
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
