Sumitomo

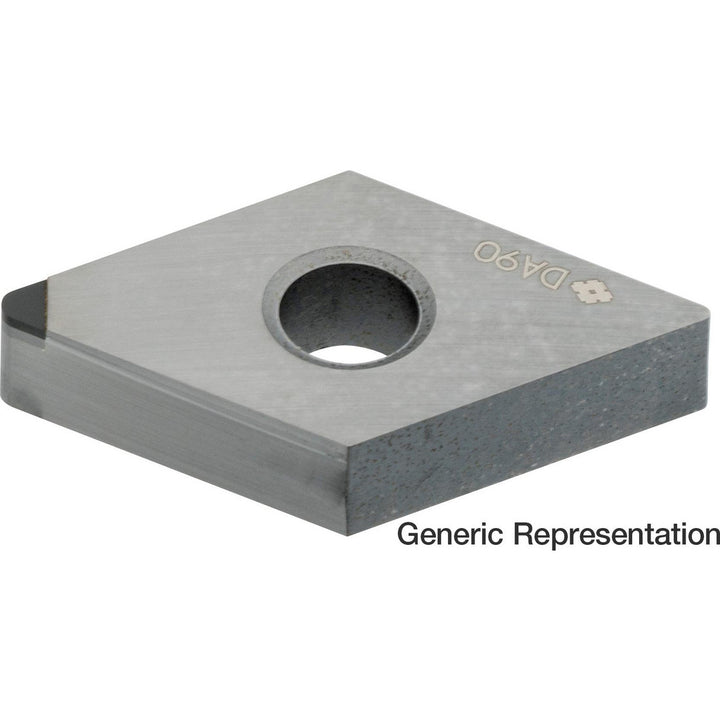

D - Diamond (Rhombic) 55-Deg 0.5000" IC PCD Insert, Grade DA90 - Sumitomo 1655FDW
MFR# 1655FDWISO/ANSI# DNMA150408Cat# NFDNMA432-DA90Series DA90
$96.65List $115.89
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeD - Diamond (Rhombic) 55-Deg
GradeDA90
MaterialPCD
Description
The Sumitomo 1655FDW is a pcd indexable insert, grade DA90.
Specifications
Ansi insert codeDNMA432
Ansi size code432
Chip breakerNo Chip Breaker
Chip breaker operationNo Chip Breaker
Clearance codeN
Corner radius (mm)0.80
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance
Inscribed circle0.5000
Insert handNeutral
Insert holding methodPin; Clamp
Insert materialPCD
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMA
Insert thickness4.76
Iso insert codeDNMA150408
Iso size code150408
Manufacturers catalog numberNFDNMA432-DA90
Manufacturer gradeDA90
Maximum depth of cut (mm)0.50
Relief angle0
Side clearanceNegative
Tolerance codeM
