Sumitomo

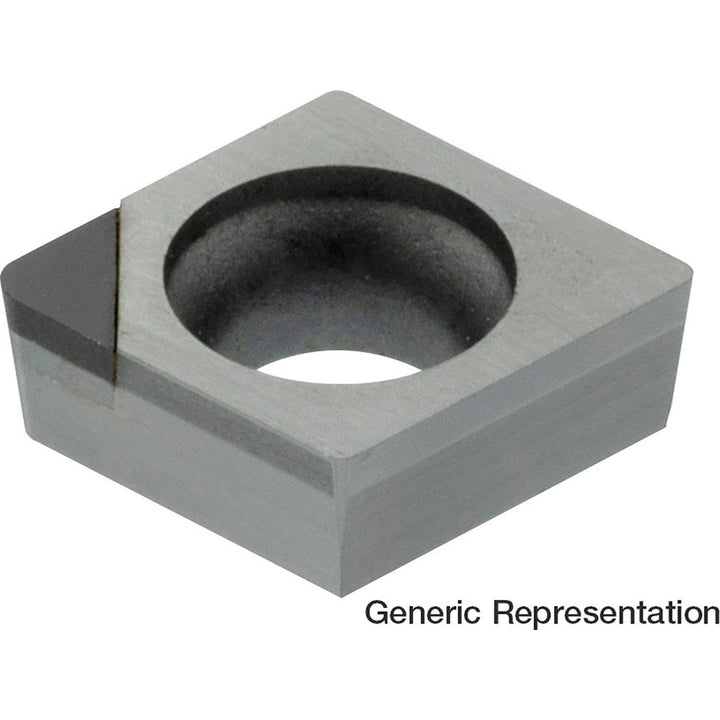

Diamond Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade DA90 - Sumitomo 1655FEF
MFR# 1655FEFCat# NFCCMA04X102-DA90Series DA90
$70.84List $84.94
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeDA90
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Sumitomo 1655FEF is a polycrystalline cubic boron nitride (pcbn) indexable insert, grade DA90.
Specifications
Chip breakerNone
Clearance codeC
Corner radius (mm)0.20
Inscribed circle (mm)4.30
Insert handNeutral
Insert holding methodScrew
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code102
Insert styleCCMA
Insert thickness1.80
Manufacturers catalog numberNFCCMA04X102-DA90
Manufacturer gradeDA90
Maximum depth of cut (mm)0.50
Relief angle7
Tolerance codeM
