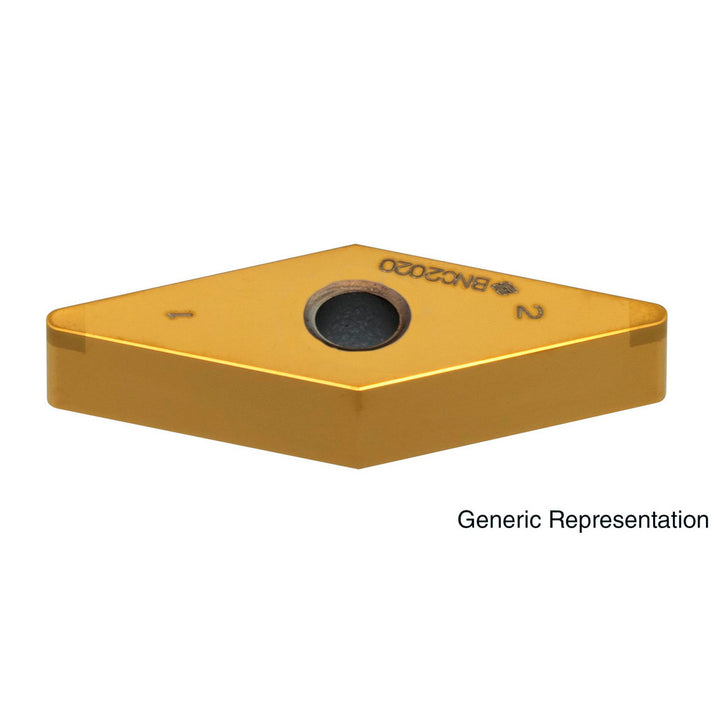

2NCVNGA160404LT CBN Insert, Grade BNC2020, TiAlN - Sumitomo 166REWB
MFR# 166REWBISO/ANSI# VNGA160404Series V
$78.14List $98.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeBNC2020
MaterialCBN
CoatingTiAlN
Description
The Sumitomo 166REWB is a 2NCVNGA160404LT cbn indexable insert, grade BNC2020, TiAlN coated. Suited for steel.
Specifications
Ansi insert codeVNGA331
Ansi size code331
Chip breakerA
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Full radiusNo
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.1102
Insert materialCBN
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNGA
Insert thickness in3/16
Iso code2NCVNGA160404LT
Iso insert codeVNGA160404
Iso size code160404
Manufacturer gradeBNC2020
Material gradeH20
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeG
