Sumitomo

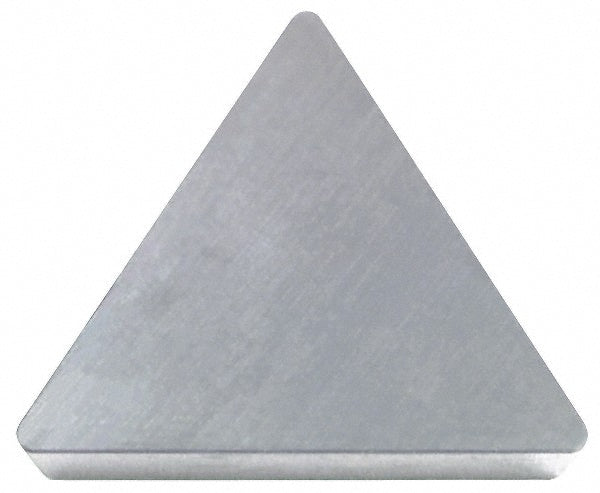

TPGN160304 PCD Insert, Grade DA2200, Coated - Sumitomo 16CD354
MFR# 16CD354ISO/ANSI# TPGN160304Series TP
$95.17List $114.12
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeDA2200
MaterialPCD
CoatingCoated
Description
The Sumitomo 16CD354 is a TPGN160304 pcd indexable insert, grade DA2200, Coated coated. Suited for non-ferrous metal.
Specifications
Chip breakerN
Clearance codeP
Coating finishCoated
Coating processPCD
Corner radius in1/64
Included angle60
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.4331
Insert materialPCD
Insert shapeTriangle
Insert size code321
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160304
Manufacturer gradeDA2200
Primary workpiece materialNon-Ferrous Metal
RakeNeutral
Rake angle0
Relief angle11
Single or multi tippedSingle Tipped
StandardsANSI; ISO 13399
Tolerance codeG
