Sumitomo

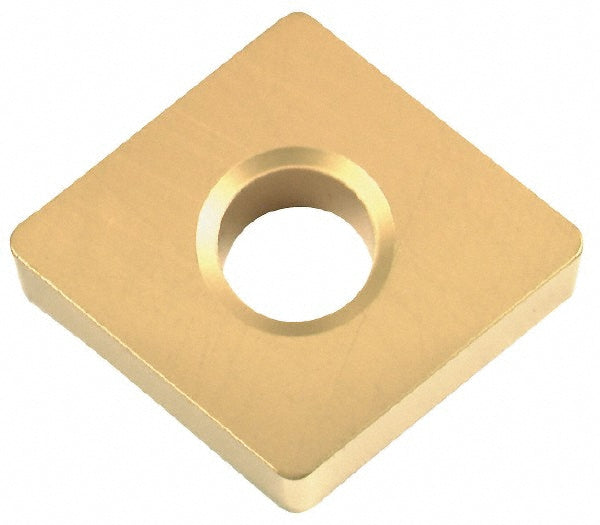

CNMX120404 Polycrystalline Diamond Insert, Grade DA2200, Coated - Sumitomo 16CD487
MFR# 16CD487ISO/ANSI# CNMX120404Series C
$148.60List $187.27
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
CoatingCoated
Description
The Sumitomo 16CD487 is a CNMX120404 polycrystalline diamond indexable insert, grade DA2200, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi codeCNMX431
Chip breakerX
Clearance codeN
Coating finishCoated
Corner radius in1/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.2244
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code431
Insert styleCNMX
Insert thickness in3/16
Iso codeCNMX120404
Manufacturer gradeDA2200
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle0
Single or multi tippedSingle Tipped
StandardsANSI; ISO 13399
Tolerance codeM
