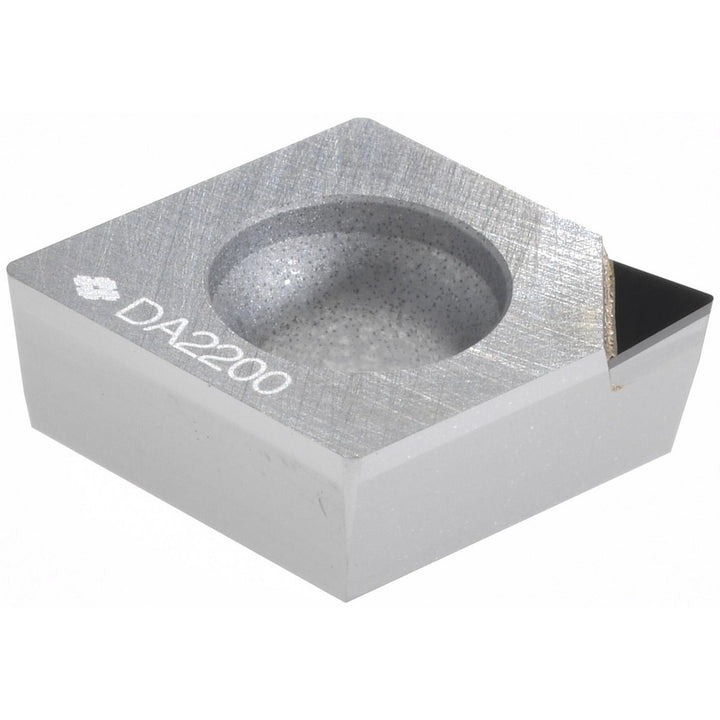

NF-CCMT09T302 PCD Insert, Grade DA2200 - Sumitomo 16CDBAB
MFR# 16CDBABISO/ANSI# CCMX09T302Series C
$44.70List $53.60
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeDA2200
MaterialPCD
Description
The Sumitomo 16CDBAB is a NF-CCMT09T302 pcd indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCMX32.50.5
Ansi size code32.50.5
Chip breakerX
Clearance codeC
Corner radius0.0078
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.1102
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.50.5
Insert styleCCMX
Insert thickness in5/32
Iso codeNF-CCMT09T302
Iso insert codeCCMX09T302
Iso size code09T302
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
