Sumitomo

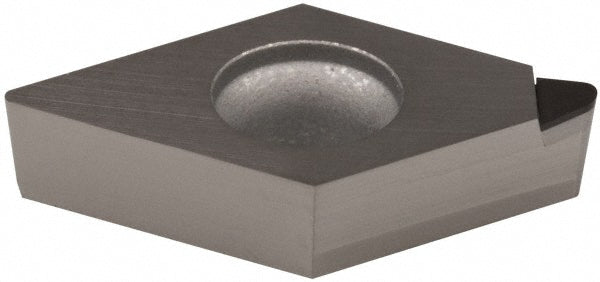

NF-DCMT070202 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBAE
MFR# 16CDBAEISO/ANSI# NF-DCMT070202Series D
$43.44List $52.08
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBAE is a NF-DCMT070202 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFDCMX21.50.5
Chip breakerX
Clearance codeC
Corner radius0.0078
Hole diameter0.1100
Included angle55.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1181
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code21.50.5
Insert styleNF-DCMX
Insert thickness in3/32
Iso codeNF-DCMT070202
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
