Sumitomo

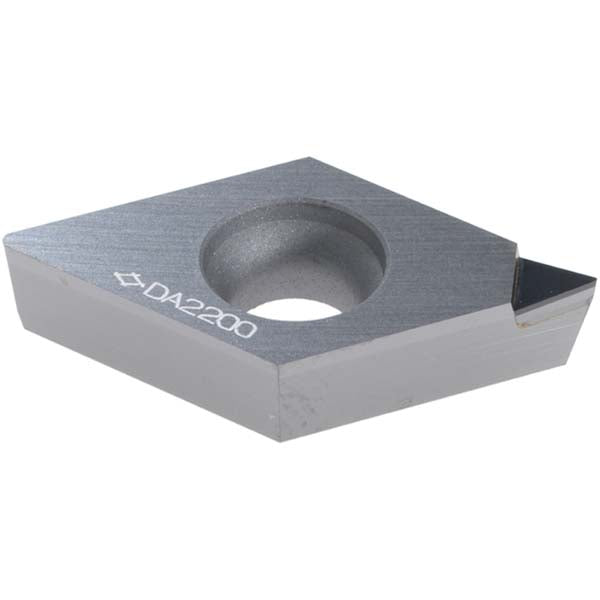

NF-DCMT11T301 Polycrystalline Diamond Insert, Grade DA2200, Coated - Sumitomo 16CDBAG
MFR# 16CDBAGISO/ANSI# NF-DCMT11T301Series D
$44.70List $53.60
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
CoatingCoated
Description
The Sumitomo 16CDBAG is a NF-DCMT11T301 polycrystalline diamond indexable insert, grade DA2200, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi codeNFDCMX32.50
Chip breakerX
Clearance codeC
Coating finishCoated
Corner radius0.0039
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.1181
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code32.5
Insert styleNF-DCMX
Insert thickness in5/32
Iso codeNF-DCMT11T301
Manufacturer gradeDA2200
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
