Sumitomo

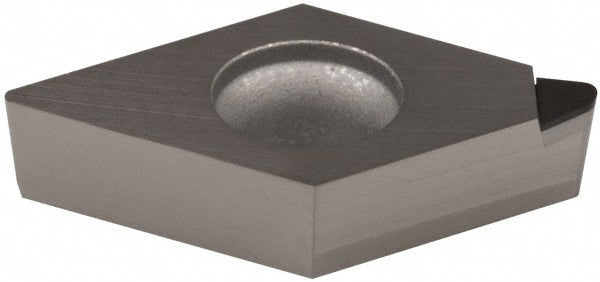

NF-DCMT11T302 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBAH
MFR# 16CDBAHISO/ANSI# NF-DCMT11T302Series D
$44.70List $53.60
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBAH is a NF-DCMT11T302 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFDCMX32.50.5
Chip breakerX
Clearance codeC
Coating processUncoated
Corner radius0.0078
Hole diameter0.1730
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.1181
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code32.50.5
Insert styleNF-DCMX
Insert thickness in5/32
Iso codeNF-DCMT11T302
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
