Sumitomo

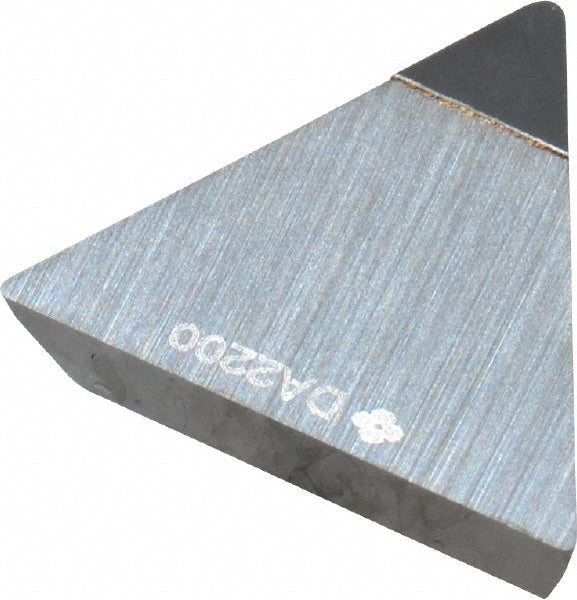

NF-TPGN110304 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBAQ
MFR# 16CDBAQISO/ANSI# NF-TPGN110304Series T
$42.15List $50.54
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBAQ is a NF-TPGN110304 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFTPG221
Chip breakerN
Clearance codeP
Corner radius in1/64
Included angle60.0
Inscribed circle in1/4
Insert holding methodClamp
Insert length0.1142
Insert materialPolycrystalline Diamond
Insert shapeTriangle
Insert size code221
Insert styleNF-TPG
Insert thickness in1/8
Iso codeNF-TPGN110304
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
