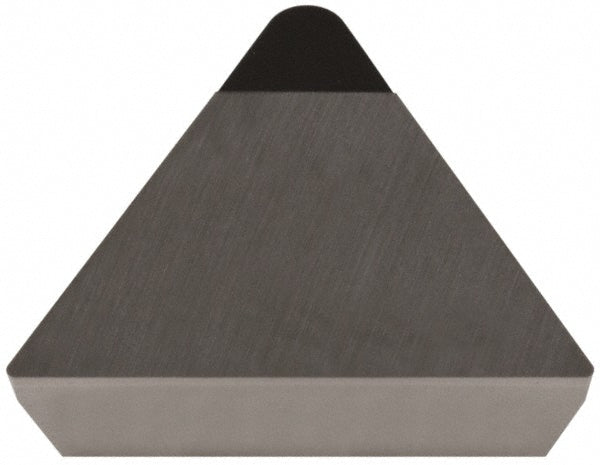

NF-TPGN160308 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBAT
MFR# 16CDBATISO/ANSI# NF-TPGN160308Series T
$44.70List $53.60
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBAT is a NF-TPGN160308 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFTPG322
Chip breakerN
Clearance codeP
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.1063
Insert materialPolycrystalline Diamond
Insert shapeTriangle
Insert size code322
Insert styleNF-TPG
Insert thickness in1/8
Iso codeNF-TPGN160308
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
