Sumitomo

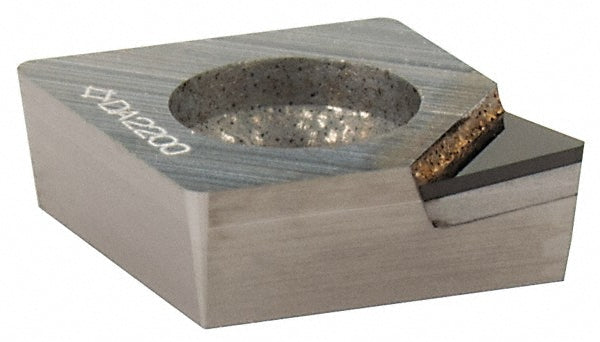

NF-CCMT060202 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBBB
MFR# 16CDBBBISO/ANSI# NF-CCMT060202Series C
$43.44List $52.08
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBBB is a NF-CCMT060202 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFCCMX21.50.5
Chip breakerX
Clearance codeC
Corner radius0.0078
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1102
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code21.50.5
Insert styleNF-CCMX
Insert thickness in3/32
Iso codeNF-CCMT060202
Manufacturer gradeDA2200
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
