Sumitomo

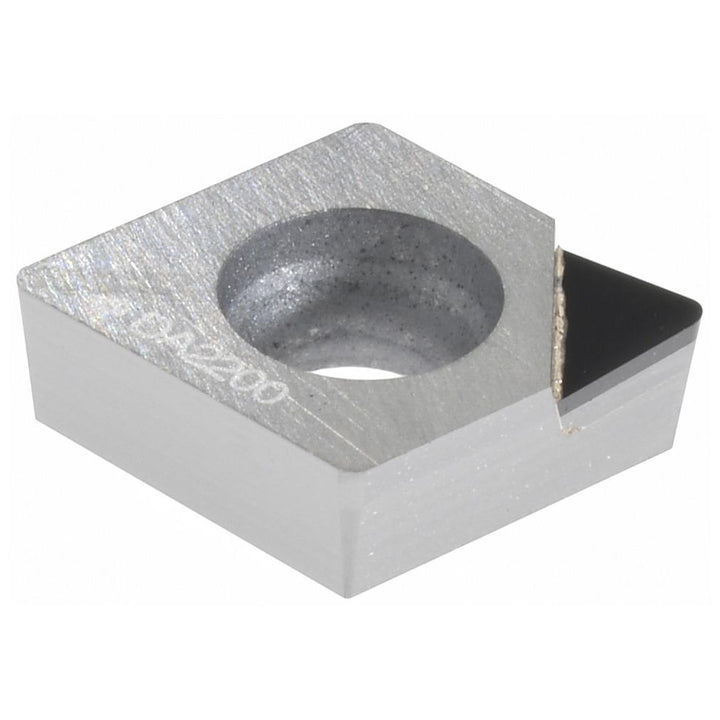

NF-CCMT060204 PCD Insert, Grade DA2200 - Sumitomo 16CDBBC
MFR# 16CDBBCISO/ANSI# CCMX060204Series C
$43.44List $52.08
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeDA2200
MaterialPCD
Description
The Sumitomo 16CDBBC is a NF-CCMT060204 pcd indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCMX21.51
Ansi size code21.51
Chip breakerX
Clearance codeC
Corner radius in1/64
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1102
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMX
Insert thickness in3/32
Iso codeNF-CCMT060204
Iso insert codeCCMX060204
Iso size code060204
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
