Sumitomo

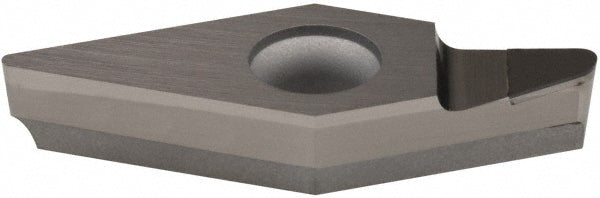

NF-VCMT110302 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBBJ
MFR# 16CDBBJISO/ANSI# NF-VCMT110302Series V
$57.48List $68.93
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBBJ is a NF-VCMT110302 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFVCMX220.5
Chip breakerX
Clearance codeC
Corner radius0.0078
Hole diameter0.1300
Included angle35.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1339
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code220.5
Insert styleNF-VCMX
Insert thickness in1/8
Iso codeNF-VCMT110302
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
