Sumitomo

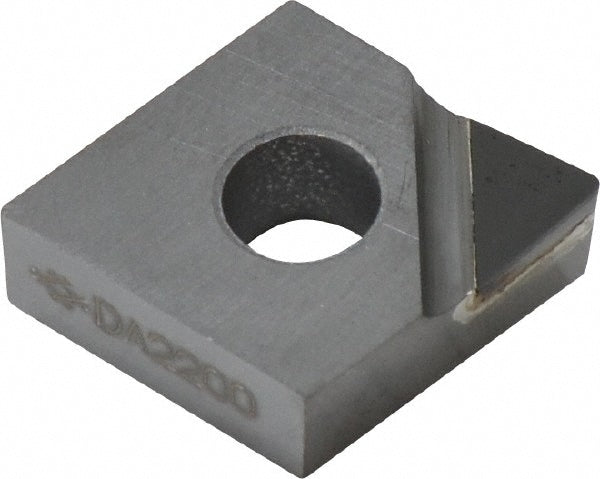

NF-CNMX120404 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBBY
MFR# 16CDBBYISO/ANSI# NF-CNMX120404Series C
$63.87List $76.58
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBBY is a NF-CNMX120404 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFCNMX431
Chip breakerX
Clearance codeN
Corner radius in1/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.2244
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code431
Insert styleNF-CNMX
Insert thickness in3/16
Iso codeNF-CNMX120404
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
