Sumitomo

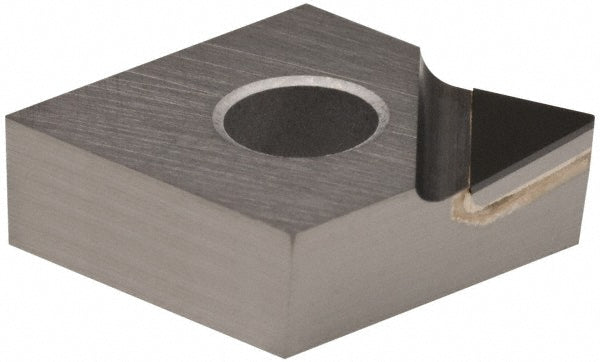

NF-CNMX120408 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBBZ
MFR# 16CDBBZISO/ANSI# NF-CNMX120408Series C
$68.24List $80.41
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBBZ is a NF-CNMX120408 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFCNMX432
Chip breakerX
Clearance codeN
Corner radius in1/32
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.2205
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code432
Insert styleNF-CNMX
Insert thickness in3/16
Iso codeNF-CNMX120408
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
