Sumitomo

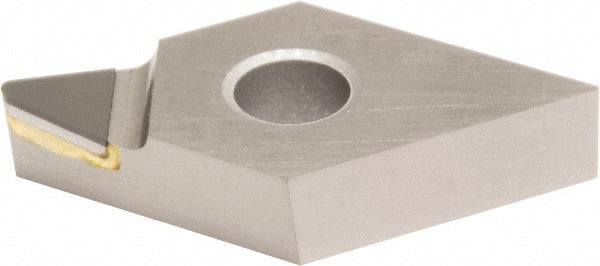

NF-DNMX150412 Polycrystalline Diamond Insert, Grade DA2200, Coated - Sumitomo 16CDBCE
MFR# 16CDBCEISO/ANSI# NF-DNMX150412Series D
$67.70List $81.18
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
CoatingCoated
Description
The Sumitomo 16CDBCE is a NF-DNMX150412 polycrystalline diamond indexable insert, grade DA2200, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi codeNFDNMX433
Chip breakerX
Clearance codeN
Coating finishCoated
Corner radius in3/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.2126
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code433
Insert styleNF-DNMX
Insert thickness in3/16
Iso codeNF-DNMX150412
Manufacturer gradeDA2200
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
