Sumitomo

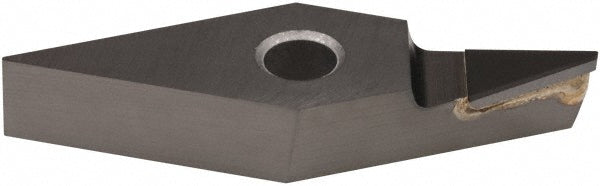

NF-VNMX160402 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBCK
MFR# 16CDBCKISO/ANSI# NF-VNMX160402Series V
$71.53List $85.77
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBCK is a NF-VNMX160402 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFVNMX330.5
Chip breakerX
Clearance codeN
Corner radius0.0078
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2717
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code330.5
Insert styleNF-VNMX
Insert thickness in3/16
Iso codeNF-VNMX160402
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
