Sumitomo

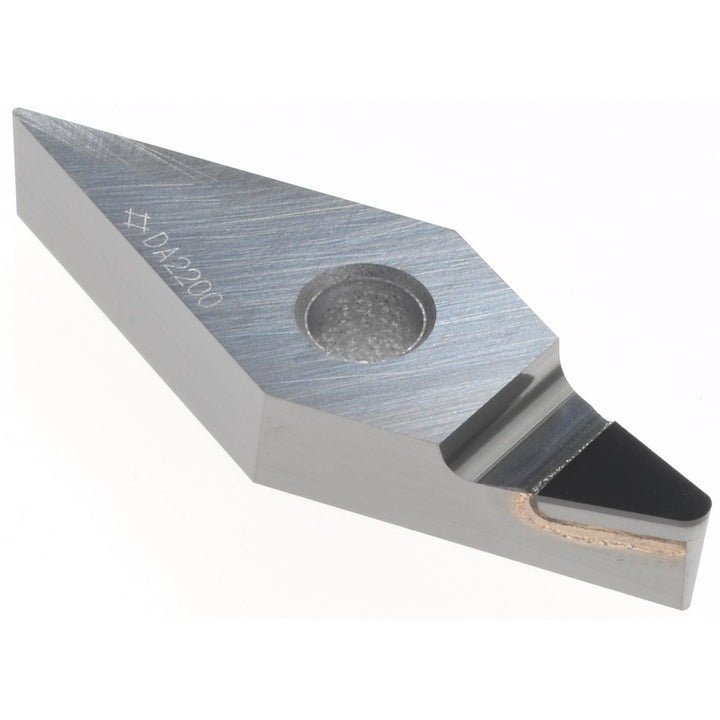

NF-VNMX160408 PCD Insert, Grade DA2200 - Sumitomo 16CDBCM
MFR# 16CDBCMISO/ANSI# VNMX160408Series V
$71.53List $85.77
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeDA2200
MaterialPCD
Description
The Sumitomo 16CDBCM is a NF-VNMX160408 pcd indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi insert codeVNMX332
Ansi size code332
Chip breakerX
Clearance codeN
Corner radius in1/32
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2205
Insert materialPCD
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMX
Insert thickness in3/16
Iso codeNF-VNMX160408
Iso insert codeVNMX160408
Iso size code160408
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
