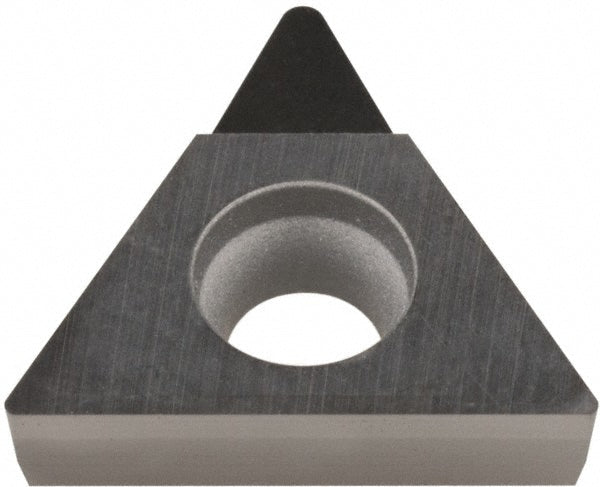

NF-TCMT110202 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBDH
MFR# 16CDBDHISO/ANSI# NF-TCMT110202Series T
$42.15List $50.54
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBDH is a NF-TCMT110202 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFTCMX21.50.5
Chip breakerX
Clearance codeC
Corner radius0.0078
Hole diameter0.1100
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1142
Insert materialPolycrystalline Diamond
Insert shapeTriangle
Insert size code21.50.5
Insert styleNF-TCMX
Insert thickness in3/32
Iso codeNF-TCMT110202
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
