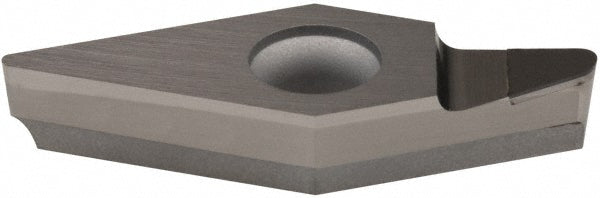

NF-VCMT160404 Polycrystalline Diamond Insert, Grade DA2200 - Sumitomo 16CDBDX
MFR# 16CDBDXISO/ANSI# NF-VCMT160404Series V
$71.53List $85.77
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
Description
The Sumitomo 16CDBDX is a NF-VCMT160404 polycrystalline diamond indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi codeNFVCMX331
Chip breakerX
Clearance codeC
Corner radius in1/64
Hole diameter0.1730
Included angle35.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.2559
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code331
Insert styleNF-VCMX
Insert thickness in3/16
Iso codeNF-VCMT160404
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
