Sumitomo

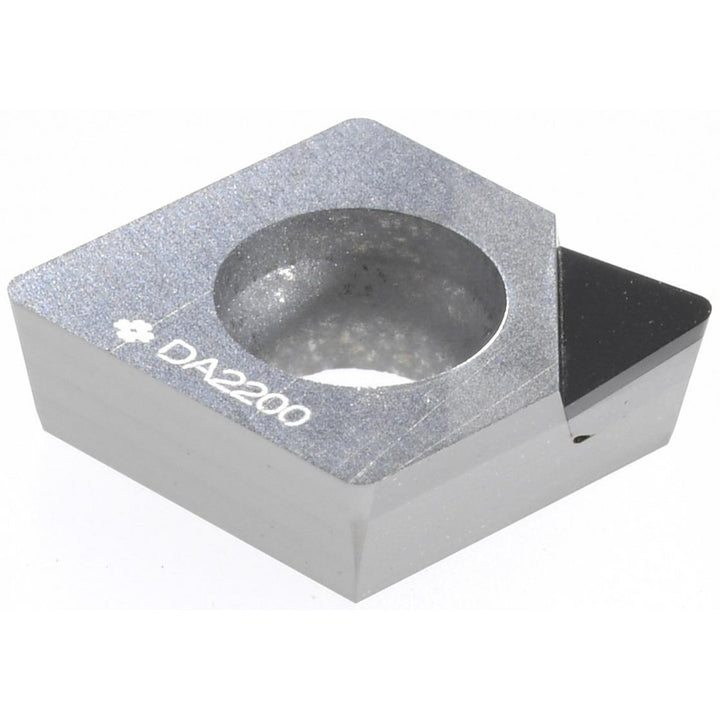

NF-CPMT060204 PCD Insert, Grade DA2200 - Sumitomo 16CDW5M
MFR# 16CDW5MISO/ANSI# CPMX060204Series C
$46.70List $58.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeDA2200
MaterialPCD
Description
The Sumitomo 16CDW5M is a NF-CPMT060204 pcd indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi insert codeCPMX21.51
Ansi size code21.51
Chip breakerX
Clearance codeP
Corner radius in1/64
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1340
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.0945
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCPMX
Insert thickness in3/32
Iso codeNF-CPMT060204
Iso insert codeCPMX060204
Iso size code060204
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
