Sumitomo

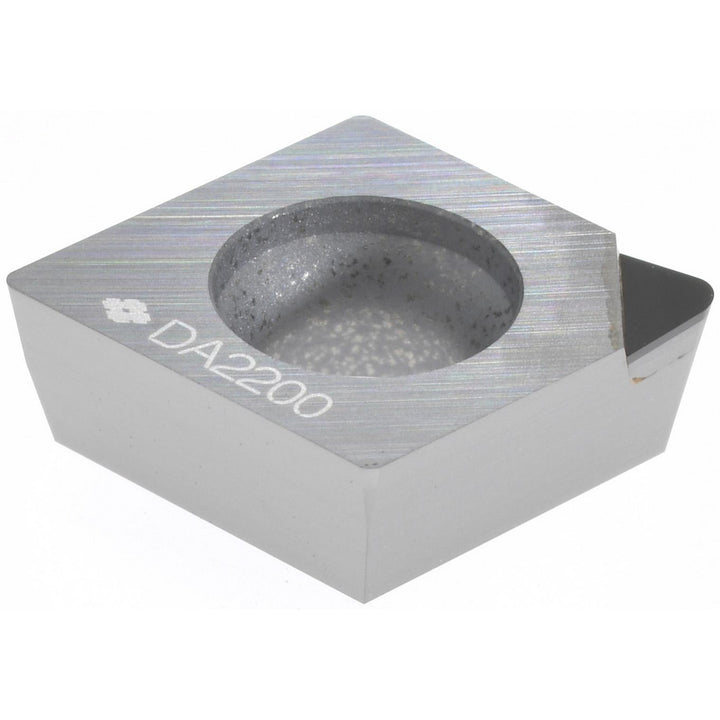

NF-CPMT09T308 PCD Insert, Grade DA2200 - Sumitomo 16CDW5T
MFR# 16CDW5TISO/ANSI# CPMX09T308Series C
$44.70List $53.60
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeDA2200
MaterialPCD
Description
The Sumitomo 16CDW5T is a NF-CPMT09T308 pcd indexable insert, grade DA2200. Suited for non-ferrous metal.
Specifications
Ansi insert codeCPMX32.52
Ansi size code32.52
Chip breakerX
Clearance codeP
Corner radius in1/32
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.1063
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCPMX
Insert thickness in5/32
Iso codeNF-CPMT09T308
Iso insert codeCPMX09T308
Iso size code09T308
Manufacturer gradeDA2200
Material gradeC2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
