Sumitomo

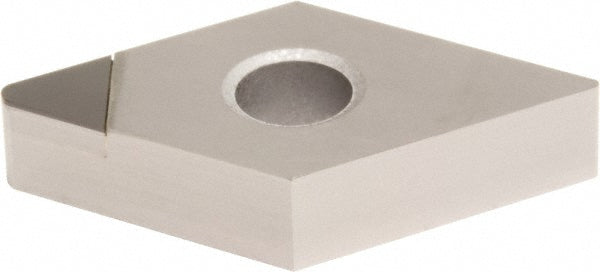

NF-DNMX150408 Polycrystalline Diamond Insert, Grade DA2200, Coated - Sumitomo 16CDW5X
MFR# 16CDW5XISO/ANSI# NF-DNMX150408Series D
$67.70List $81.18
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
CoatingCoated
Description
The Sumitomo 16CDW5X is a NF-DNMX150408 polycrystalline diamond indexable insert, grade DA2200, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi codeNFDNMA432
Chip breakerA
Clearance codeN
Coating finishCoated
Corner radius in1/32
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0787
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code432
Insert styleNF-DNMA
Insert thickness in3/16
Iso codeNF-DNMX150408
Manufacturer gradeDA2200
Primary workpiece materialNon-Ferrous Metal
RakeNeutral
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
