Sumitomo

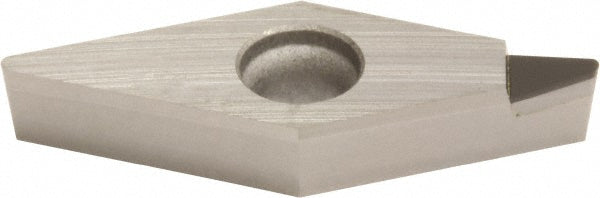

NF-VCMT110301 Polycrystalline Diamond Insert, Grade DA2200, Coated - Sumitomo 16CDW66
MFR# 16CDW66ISO/ANSI# NF-VCMT110301Series V
$57.48List $68.93
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeDA2200
MaterialPolycrystalline Diamond
CoatingCoated
Description
The Sumitomo 16CDW66 is a NF-VCMT110301 polycrystalline diamond indexable insert, grade DA2200, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi codeNFVCMX220
Chip breakerX
Clearance codeC
Coating finishCoated
Corner radius0.0039
Hole diameter0.1340
Included angle35.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1378
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code220
Insert styleNF-VCMX
Insert thickness in1/8
Iso codeNF-VCMT110301
Manufacturer gradeDA2200
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
