Sumitomo

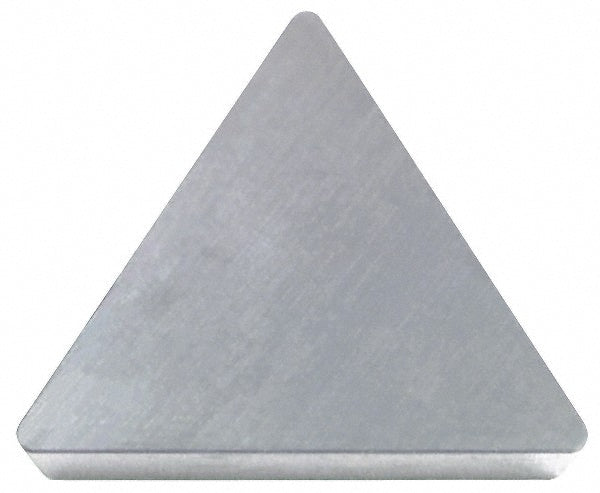

TPGN220404 PCD Insert, Grade DA2200, Coated - Sumitomo 16CDWAW
MFR# 16CDWAWISO/ANSI# TPGN220404Series TP
$101.69List $121.94
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeDA2200
MaterialPCD
CoatingCoated
Description
The Sumitomo 16CDWAW is a TPGN220404 pcd indexable insert, grade DA2200, Coated coated. Suited for non-ferrous metal.
Specifications
Chip breakerN
Clearance codeP
Coating finishCoated
Corner radius in1/64
Included angle60
Inscribed circle in1/2
Insert holding methodClamp
Insert length0.8661
Insert materialPCD
Insert shapeTriangle
Insert size code431
Insert styleTPG
Insert thickness in3/16
Iso codeTPGN220404
Manufacturer gradeDA2200
Primary workpiece materialNon-Ferrous Metal
RakeNeutral
Rake angle0
Relief angle11
Single or multi tippedSingle Tipped
StandardsANSI; ISO 13399
Tolerance codeG
