Sumitomo

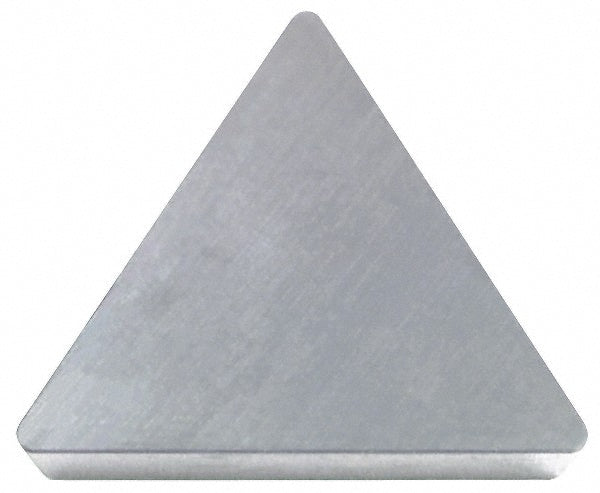

TPGN220408 PCD Insert, Grade DA2200, Coated - Sumitomo 16CDWAY
MFR# 16CDWAYISO/ANSI# TPGN220408Series TP
$98.73List $118.39
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeDA2200
MaterialPCD
CoatingCoated
Description
The Sumitomo 16CDWAY is a TPGN220408 pcd indexable insert, grade DA2200, Coated coated. Suited for non-ferrous metal.
Specifications
Chip breakerN
Clearance codeP
Coating finishCoated
Corner radius in1/32
Included angle60
Inscribed circle in1/2
Insert holding methodClamp
Insert length0.8661
Insert materialPCD
Insert shapeTriangle
Insert size code432
Insert styleTPG
Insert thickness in3/16
Iso codeTPGN220408
Manufacturer gradeDA2200
Primary workpiece materialNon-Ferrous Metal
RakeNeutral
Rake angle0
Relief angle11
Single or multi tippedSingle Tipped
StandardsANSI; ISO 13399
Tolerance codeG
