Sumitomo

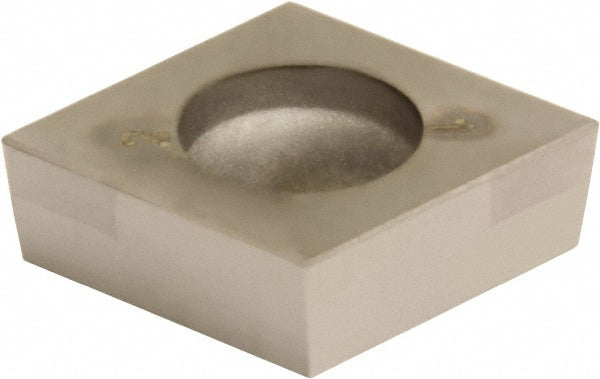

2NC-CCGW09T302 Polycrystalline Cubic Boron Nitride Insert, Grade BNC200, TiN - Sumitomo 16DTAEQ
MFR# 16DTAEQISO/ANSI# 2NC-CCGW09T302Series C
$75.97List $97.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBNC200
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN
Description
The Sumitomo 16DTAEQ is a 2NC-CCGW09T302 polycrystalline cubic boron nitride indexable insert, grade BNC200, TiN coated.
Specifications
Ansi code2NCCCGA32.50.5
Chip breakerA
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0078
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code32.50.5
Insert style2NC-CCGA
Insert thickness in5/32
Iso code2NC-CCGW09T302
Manufacturer gradeBNC200
Maximum depth of cut0.0150
Number of cutting edges2
RakePositive
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeG
