Sumitomo

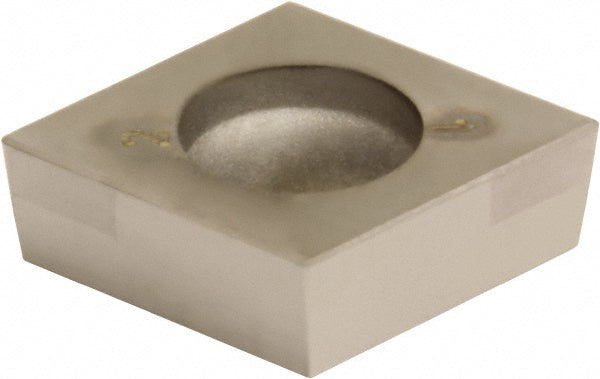

2NC-CCGW09T304 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BNC200, TiN - Sumitomo 16DTAER
MFR# 16DTAERISO/ANSI# 2NC-CCGW09T304Series C
$75.97List $97.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBNC200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingTiN
Description
The Sumitomo 16DTAER is a 2NC-CCGW09T304 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BNC200, TiN coated.
Specifications
Chip breakerA
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code32.51
Insert style2NC-CCGA
Insert thickness in5/32
Iso code2NC-CCGW09T304
Manufacturer gradeBNC200
Maximum depth of cut0.0150
Number of cutting edges2
RakePositive
Relief angle7
Secondary workpiece materialHard Material
StandardsANSI; ISO 13399
Tolerance codeG
