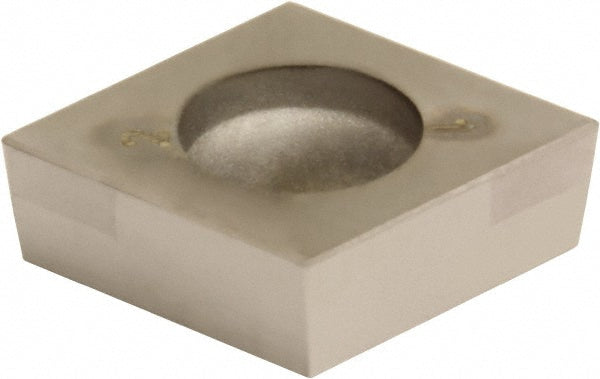

2NC-CCGW060202 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BNC200, TiN - Sumitomo 16DTASY
MFR# 16DTASYISO/ANSI# concatenate(prodval('ATT_InsertStyle_TXT'),prodval('ATT_ISOSizeCode_TXT'))Series C
$87.38List $110.11
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeBNC200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingTiN
Description
The Sumitomo 16DTASY is a 2NC-CCGW060202 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BNC200, TiN coated.
Specifications
Ansi insert codeconcatenate(prodval('ATT_InsertStyle_TXT'),prodval('ATT_ANSISizeCode_TXT'))
Chip breakerA
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0078
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.0945
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code21.50.5
Insert style2NC-CCGA
Insert thickness in3/32
Iso code2NC-CCGW060202
Iso insert codeconcatenate(prodval('ATT_InsertStyle_TXT'),prodval('ATT_ISOSizeCode_TXT'))
Manufacturer gradeBNC200
Maximum depth of cut0.0150
Number of cutting edges2
RakePositive
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeG
